Explore Our Hyundai Electric Motor Catalog

As a trusted source for Hyundai electric motors, GIE offers a wide range of industrial models built for demanding applications. Our Hyundai electric motor catalog includes:

View Catalog
Severe-duty motors for harsh environments
Explosion-proof models for hazardous locations
IEEE 841-compliant designs for oil and gas or high-vibration environments

Easily browse our online catalog to compare motor specifications, request additional information, and place your order.

Key Models and Motor Configurations

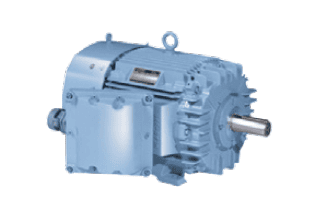

  • HES/HHI Models
    HES/HHI Models

    These severe-duty, premium-efficiency motors are designed for tough industrial environments. Available in foot, C-face, D-flange, and footless configurations, they feature TEFC enclosures, IP55 protection, and cast iron construction

    Learn more here.

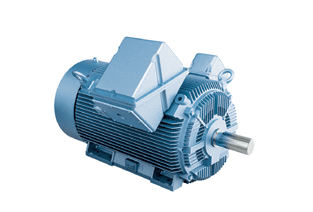

  • HSDE Models
    HSDE Models

    HSDE motors are designed for large-frame, premium-duty applications. They include enhanced thermal management features, such as built-in heaters and WTD & BTD sensors. These motors are well-suited for high-power, high-reliability installations.

    Learn more here.

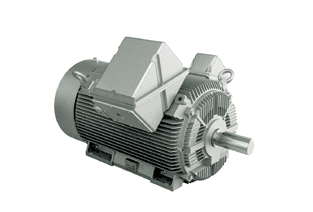

  • IEEE XL & IEEE HL Models (IEEE 841 Standard)
    IEEE XL & IEEE HL Models (IEEE 841 Standard)

    These motors are designed for harsh environments, including oil and gas applications. They feature sealed bearings, cast iron construction, inverter-duty compatibility, and are built to meet IEEE 841 standards.

    Learn more here.

  • IXHHI Models (Explosion Proof)
    IXHHI Models (Explosion Proof)

    IXHHI motors are certified for hazardous locations. These Class I, Division 1 motors are suitable for Group C & D environments and meet Temperature Class T4 requirements.

    Learn more here.

Benefits of Hyundai Electric Motors for End Users

Hyundai electric motors offer a range of benefits, including:

  • Energy efficiency
  • Longevity and durability in industrial environments
  • Compatibility with variable-speed drive systems
  • Class F insulation for thermal performance
  • Cast iron frames for structural strength
  • Suitable for use in OEM integration, motor repair/replacement, and automation

These design features make them well-suited for a wide range of demanding industrial applications.

Energy Efficient
VFD Compatible
IP55 Protection
Severe Duty Rated
Hazardous Location Certified
Energy Efficient Energy Efficient
VFD Compatible VFD Compatible
IP55 Protection IP55 Protection
Severe Duty Rated Severe Duty Rated
Hazardous Location Certified Hazardous Location Certified

Why Choose GIE as Your Hyundai Motor Supplier?

GIE is a Southeastern U.S. distributor of Hyundai motors. We offer rapid fulfillment, emergency repair service, and expert support from technical staff. Our team provides access to difficult-to-source and large-frame Hyundai motors to meet unique industrial requirements.

Applications & Industries We Serve

GIE provides Hyundai electric motors to meet the needs of various applications, including:

  • Oil & Gas Facilities
  • Aggregate & Mining
  • Pulp & Paper
  • Water & Wastewater
  • Food & Beverage Equipment
  • Motor Shops & Repair Centers

Frequently Asked Questions (FAQ)

What is the difference between HES and HSDE Hyundai Motors?

HES motors (Hyundai Electric Standard) are premium-efficiency, severe-duty motors designed for mid-range horsepower applications, typically up to 150 HP. They feature cast iron construction, are inverter-duty compatible, and are available in C-face, D-flange, and footless configurations.

HSDE motors (Hyundai Severe Duty Electric) are used in applications above 150 HP. They include PT100 RTDs for winding and bearing temperature monitoring, built-in heaters, and auxiliary terminal boxes. These motors are ideal when higher torque, greater thermal protection, and advanced monitoring for continuous heavy-duty cycles are needed.

Can Hyundai Motors be Used With Variable Frequency Drives (VFDs)?

Yes. All Hyundai electric motors offered by GIE are inverter-duty compatible for use with VFDs. They include:

  • Class F insulation with B temperature rise
  • Cast iron frames for thermal performance
  • Voltage ratings compatible with VFD control (230/460V or 460V)
  • Shaft grounding provisions and bearing protection in some models

These features support energy efficiency, speed control, and smooth startup in automated or process environments.

Are Explosion-Proof Motors Stocked or Made-to-Order?

Gainesville Industrial Electric offers both stocked and made-to-order explosion-proof motors from Hyundai’s IXHHI Series. Stocked models meet Class I, Division 1, Group C & D hazardous location standards. For non-stocked configurations—such as footless or vertical C-face mounting—GIE provides made-to-order options with short lead times directly through Hyundai Electric’s supply chain.

Contact us for current availability or to request a quote based on your specific horsepower, mounting, and certification requirements.

What Sizes Are Typically Available Off-the-Shelf From GIE?

GIE typically stocks foot-mounted and C-face motors in the 1 to 150 HP range, particularly in the HES/HHI and IEEE HL models, which are commonly used for OEM and replacement applications. For large-frame motors such as HSDE, IXHHI, and IEEE XL, GIE has priority access to distributor inventory and can coordinate expedited shipping. Standard sizes are available for next-day or 2–3 day delivery throughout the Southeastern U.S.

Do You Offer Rush Delivery or Field Technical Support?

Yes. Gainesville Industrial Electric provides urgent turnaround support for electric motors. Services include rush shipping for in-stock motors, local delivery within 100-150 miles of Gainesville, GA, phone-based technical support, field troubleshooting assistance, and connections to authorized service partners. We also offer emergency motor repair and drop-in replacement guidance.

We understand downtime is costly, and our team works with contractors, OEMs, and plant managers to get the right motor on-site and installed fast.

Ready To Get Started?

Engineers, maintenance managers, and buyers across the Southeastern U.S. rely on GIE for dependable delivery timelines and responsive technical support. If you’re looking for Hyundai electric motors, request a quote, browse our catalog, or contact our team to get started.
